Biological Microscope (BM series)
This series is widely used in Biology, Histology, Medicament chemistry reseach and Clinical examination and education

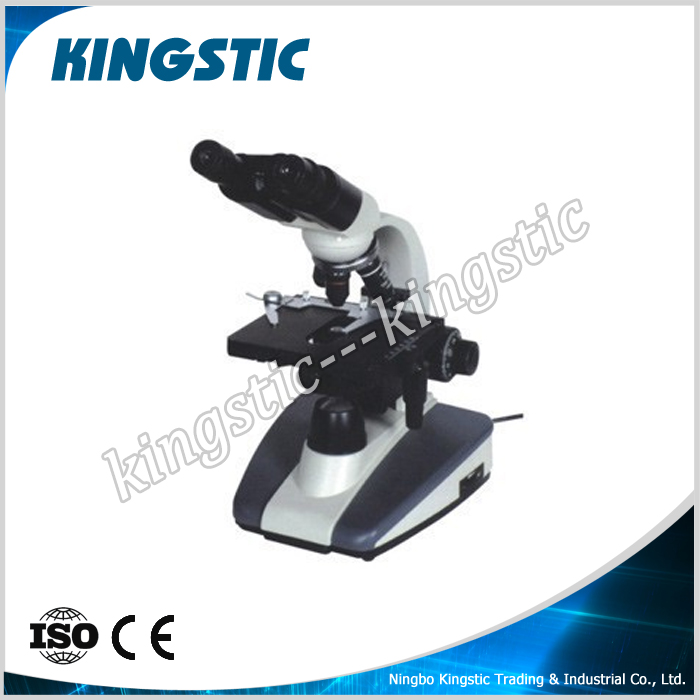

ItemNo: BM-016B
| Specifications | |
| Eyepiece | WF10X |
| Objective | 45mm achromatic objective: 4X,10X,40X(S),100X(S,Oil) |
| Viewing head | |
| Compensation free binocular head,30ºlnclined,360ºrotatable | |
| Stage | |
| Double layers mechanical stage: 140X155mm,Moving range X-Y:50X70mm |
|
| Diaphragm | Φ2-Φ30mm lris diaphragm and filter |
| Condenser | ABBE condenser:N.A.1.25 |
| Focusing | |
| Coaxial coarse and fine focusing adjustable mechanism:35mm |
|
| Illumination | Built-in adjustable bringtness halogen lamp 110Vor120V/6V20W |
| Package | Foamed plastic+ carton |
| Optional | Eyepiece WF16X Incandescent Lamp 20W,5W Fluorescent Lamp,LED Lamp,CCD Video Camera,Accessories For Photography Turret Annular Phase Contrast Kit |
