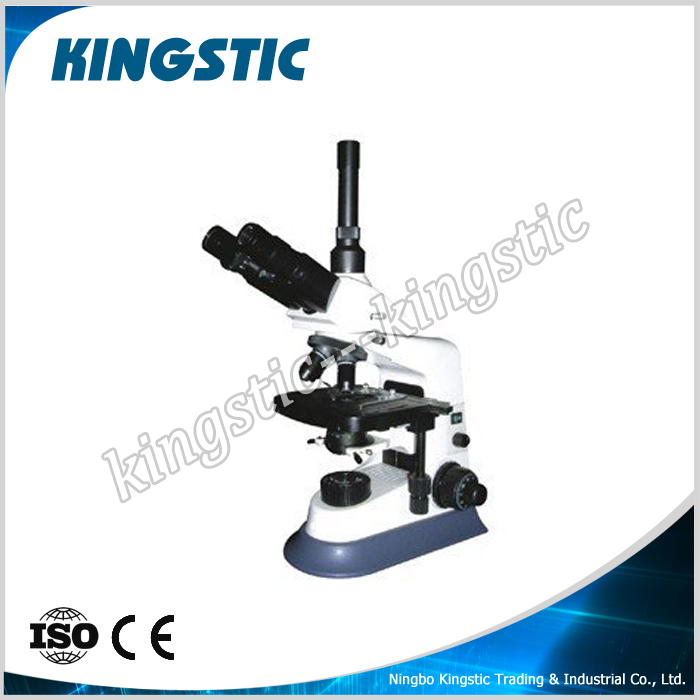

Biological Microscope        (BM series)

ItemNo: BM-001D
This microscope is used in biological,organic pathological and Pharmaceutical research.It also can be used in college.Features
1. Wide view of eyepieces, brighter illumination adjustment and quality optics parts make clear image.
2. Inside fixed nosepiece and objective can make user operate smoothly and have better view.
3. It is convenient for user because of wide mechanical stage and double sides specimen clip.
4. Accurate focusing adjustment and rational design for relation of user and microscope make operator lightly when he is operating.
5. It is easy to change lamp because the light collector is fixed the better place.



Specifications

Eyepiece

WF10X

Objective

Achromatic Objective(45mm)
4X , 10X , 40X(S) , 100X(S,Oil)

Viewing head


Compensation free Binocular Head Inclined
at30º ,360º Rotatable


Stage

Double layer Mechanical Stage 180mmX
150mm Moving Range:75mmX50mm

Condenser

Abbe N.A.1.25 Condenser With Iris
Diaphragm & Filter

Focusing

Coaxial Coarse&Fine Focus Adjustment

Light Collector

High point fixed illuminate or kohler illumination

lllumination

85V-230V/12V30W Halogen lamp.Adjustable Brightness.
Optional

Eyepiece: WF16X,WF20X,WF25X,P16X.Semi-plan:4X 10X 20X(S) 40X(S) 60X(S) 100X(S). Infinity objective: 4X 10X 40X(S)100X(S).Contrast Kit,(Backward nosepiece)
