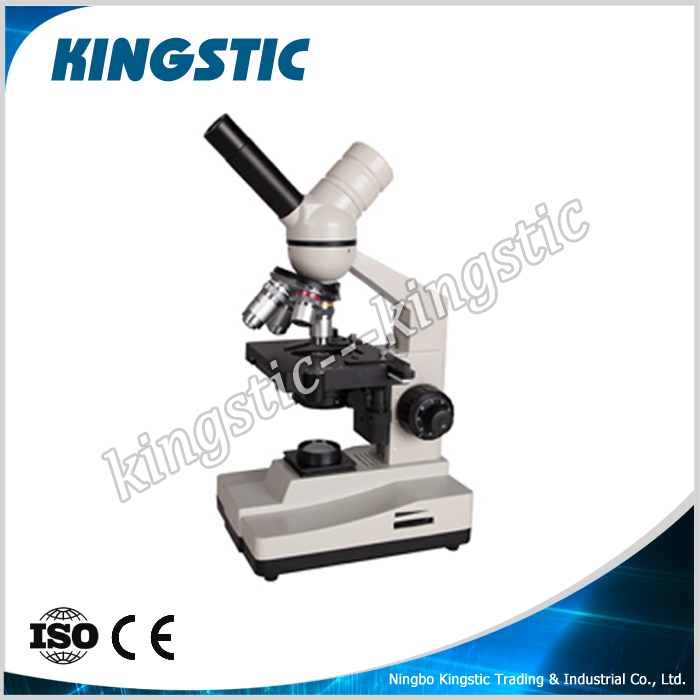

Digital Microscope

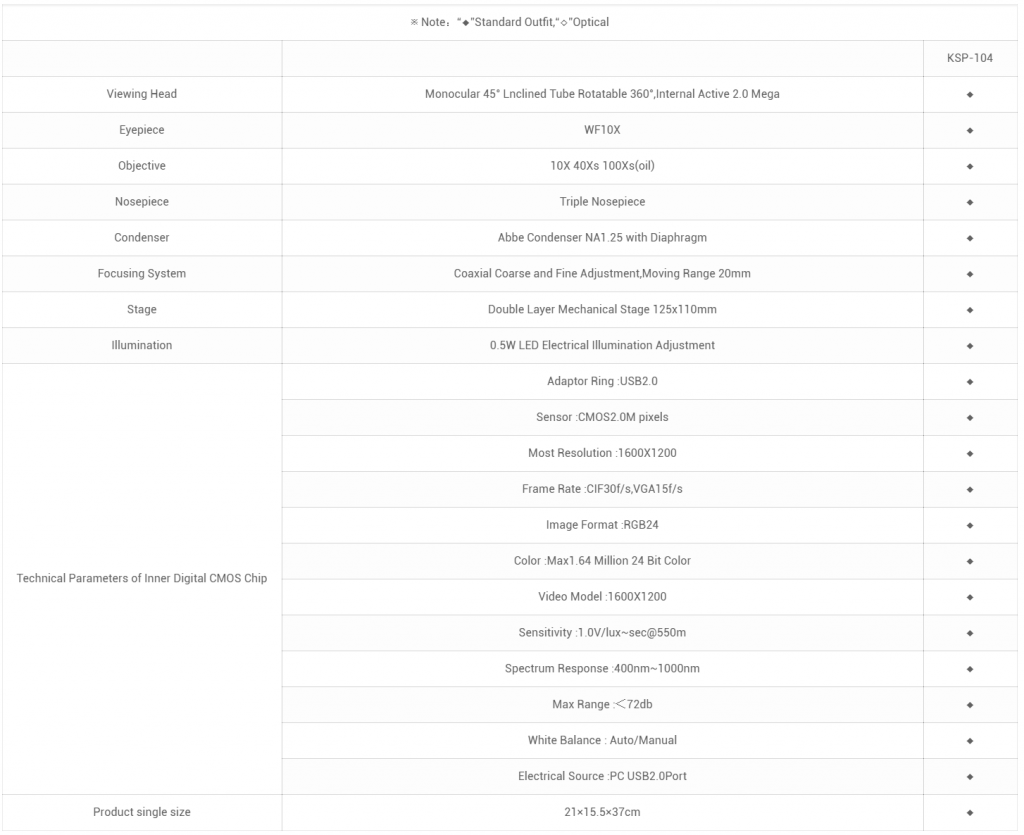

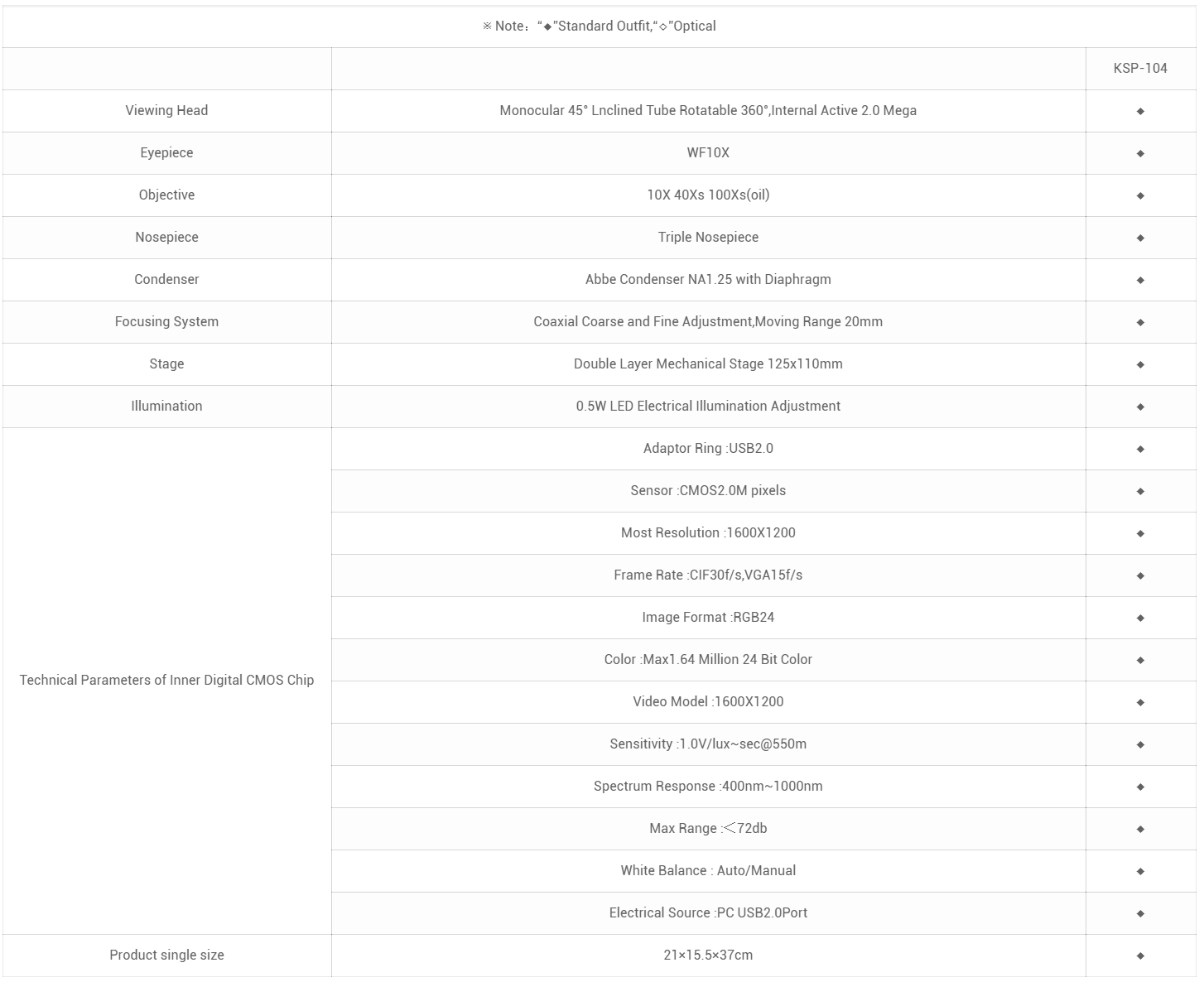

Viewing Head | Monocular 45° Lnclined Tube Rotatable 360°,Internal Active 2.0 Mega
Eyepiece | WF10X
Objective | 10X 40Xs 100Xs(oil)
Nosepiece | Triple Nosepiece
Condenser | Abbe Condenser NA1.25 with Diaphragm
Focusing System | Coaxial Coarse and Fine Adjustment,Moving Range 20mm
Stage | Double Layer Mechanical Stage 125x110mm
Illumination | 0.5W LED Electrical Illumination Adjustment

Technical Parameters of Inner Digital CMOS Chip:

| Adaptor Ring :USB2.0
| Sensor :CMOS2.0M pixels
| Most Resolution :1600X1200
| Frame Rate :CIF30f/s,VGA15f/s
| Image Format :RGB24
| Color :Max1.64 Million 24 Bit Color
| Video Model :1600X1200
| Sensitivity :1.0V/lux-sec@550m
| Spectrum Response :400nm-1000nm
| Max Range :<72db
| White Balance : Auto/Manual
| Electrical Source :PC USB2.0Port
Product single size | 21×15.5×37cm
