Digital Microscope (DM series)

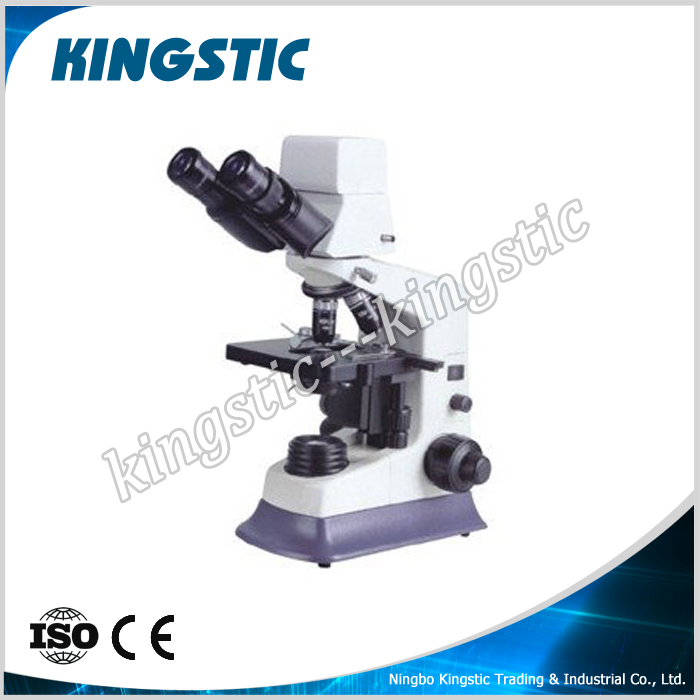

ItemNo: DM-001A
Digital microscope is one that allows you to send and save images from your microscope to your computer.
These popular microscopes have built-in cameras. Some offer digital output only, others both digital and video.
Use these as regular microscopes or send microscopic images directly to your computer or video monitor.
The DM series can connect to your PC and meet your requirements.
| Specifications | |
| Eyepiece | High Point and Wide Field EW10X/20mm |
| Objective | CF High-contrast Objective 4X,10X,40X,100X |
| Viewing head | Compensation Free Binocular Head at 30º , Interpupilary Distance 55-75mm |
| Camera System | Inside Digital Camera System,1.3M pixel CMOS Chip |
| Stage | Double Layers Mechanical Stage 140X140mm/50X75mm |
| Condenser | NA1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & pinion Adjustment |
| Focusing | Coaxial Coarse & Fine Focus Adjustment |
| Illumination | 110Vor220V/6V20W Halogen Lamp ,Brightness Adjustable |
| lmage Outputs | USB2.0 |
| Optional | Plan Achromatic Objective,Infinite Achromatic Objective System,Infinite Plan Achromatic Objective System,Dark Field Condenser (Dry) NA0.9,Dark Field Condenser (Oil) NA1.25-1.36,Kohler Illumination |
| Note | Model 001A,002A.003A.also can digital dideo system |
