bm-018a-biological-microscope

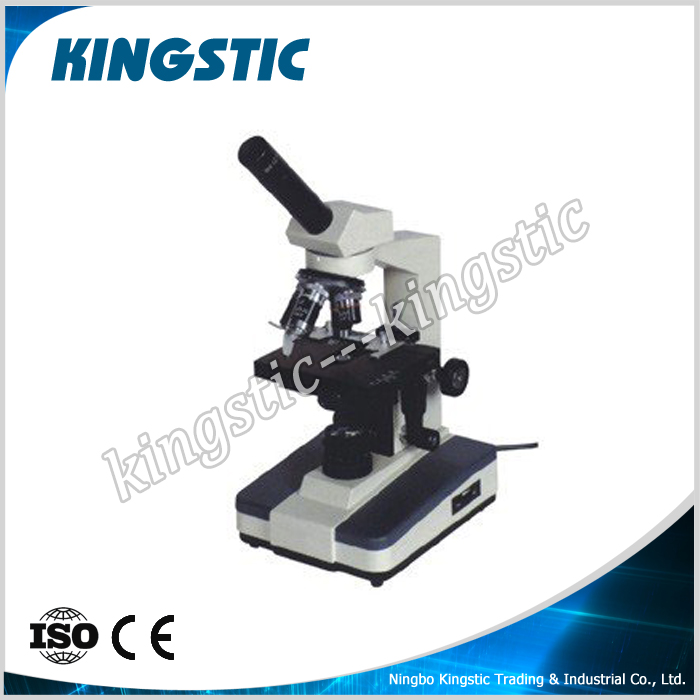

Biological Microscope         (BM series)
ItemNo: BM-018A

Categories: ,
Specifications
Eyepiece  WF10X
Objective 45mm achromatic objective:
4X,10X,40X(S),100X(S,Oil)
Viewing head Monocular head,45º lnclined,
360º rotatable
Stage Double layers mechanical stage:
125X130mm,Moving range X-Y:30X60mm
Diaphragm Φ2-Φ30mm lris diaphragm and filter
Condenser ABBE condenser:N.A.1.25
Focusing Coaxial coarse and fine focusing
adjustable mechanism:20mm
Illumination Built-in adjustable bringtness halogen lamp
110Vor120V/6V20W
Package Foamed plastic+ carton
Optional Eyepiece WF16X Incandescent Lamp 20W,5W Fluorescent Lamp,LED Lamp,CCD Video Camera,Accessories For Photography
