bm-013a-biological-microscope

Biological Microscope    (BM series)

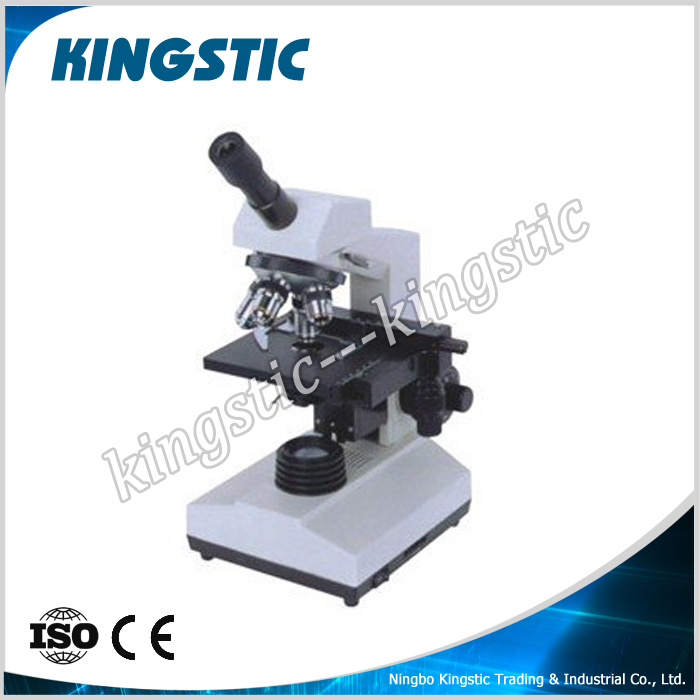

ItemNo: BM-013A

Categories: ,
Specifications
Eyepiece WF10X,WF16X
Objective 45mm achromatic objective:
4X,10X,40X(S),100X(S,Oil)
Viewing head Monocular head at 45º,360º rotatable
Stage Double layers mechanical stage 140X140mm/75X50mm
Diaphragm 2-30mm lris diaphragm and filter
Focusing Coaxial coarse and fine adjustment,focusing range 30mm,focusing interval0.002mm
Condenser Abbe NA1.25 with lris diaphram&filter
lllumination Built-in illumination,halogen lamp110Vor220V/6V20W
Optional Plan achromatic objectives, Quintuple Nosepiece, Plan-concave mirror,Turret Annular Phase Contrast Kit
