mm-017a-metallurgical-microscope

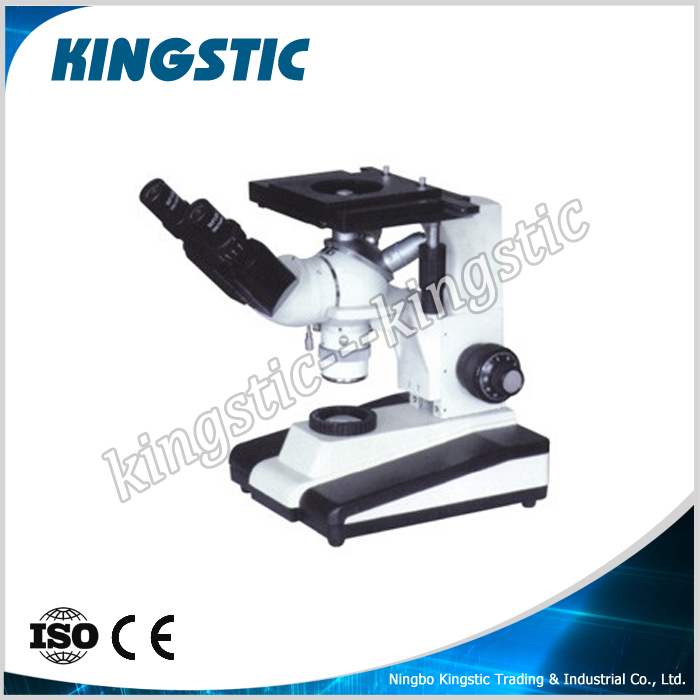

Metallurgical Microscope    (MM series)

ItemNo: MM-017A
The instrument is widely used to distinguish and analyse
different kinds of metal and alloy is metallurgical structures
in factories,schools and laboratories.It can be used for photography when it is matched with camera device.

Components & specification
Eyepieces Wide field WF10X(18mm)
Objectives Plan achromatic PL10X/0.25
PL25X/0.40
PL40X/0.60(S)
PL100X/1.25(S,Oil)
Viewing head Binocular Compensation inclined of 30º
Stage Double layer Mechanical stage
lllumination 110Vor220V/6V20W halogen lamp, adjustable brightness
Optional WF16X(11mm),PL60X/0.85(S)
