Digital Microscope (DM series)

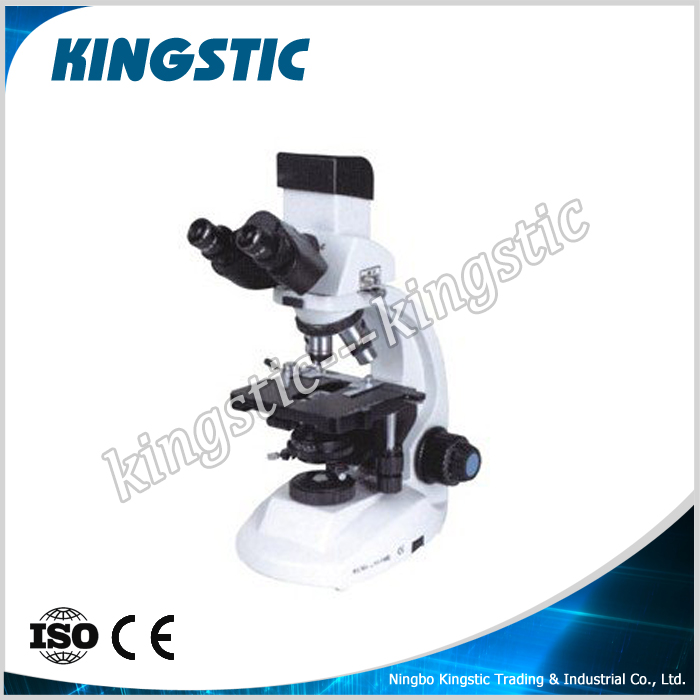

ItemNo: DM-003A
Digital microscope is one that allows you to send and save images from your microscope to your computer.
These popular microscopes have built-in cameras. Some offer digital output only, others both digital and video.
Use these as regular microscopes or send microscopic images directly to your computer or video monitor.
The DM series can connect to your PC and meet your requirements
| Specifications | |
| Eyepiece | Wide field Eyepiece WF10X |
| Objective | Achromatic Objective 4X,10X,40X,100X |
| Camera System | Inside Digital Camera System,0.35M pixel CMOS Chip |
| Stage | Double Layers Mechanical Stage 140X140mm/50X75mm |
| Condenser | NA1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & pinion Adjustment |
| Focusing | Coaxial Coarse & Fine Focus Adjustment |
| Illumination | 110Vor220V/6V20W Halogen Lamp ,Brightness Adjustable |
| lmage Outputs | USB1.0 |
| Optional | Plan Achromatic Objective,Infinite Achromatic Objective System,Infinite Plan Achromatic Objective System,Dark Field Condenser (Dry) NA0.9,Dark Field Condenser (Oil) NA1.25-1.36,Kohler Illumination |
| Note | Model 001A,002A.003A.also can digital dideo system |
