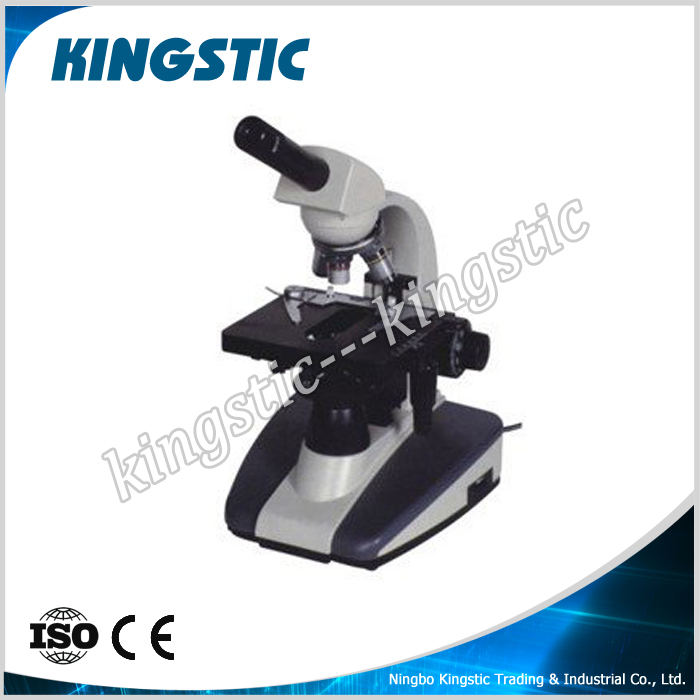

Biological Microscope (BM series)
This series is widely used in Biology, Histology, Medicament chemistry reseach and Clinical examination and education.
ItemNo: BM-016A
Specifications | |
Eyepiece | WF10X |
Objective | 45mm achromatic objective: 4X,10X,40X(S),100X(S,Oil) |
Viewing head | |
Monocular head,30º lnclined,360º rotatable | |
Stage | |
Double layers mechanical stage: 140X155mm,Moving range X-Y:50X70mm |
|
Diaphragm | Φ2-Φ30mm lris diaphragm and filter |
Condenser | ABBE condenser:N.A.1.25 |
Focusing | |
Coaxial coarse and fine focusing adjustable mechanism:35mm |
|
Illumination | Built-in adjustable bringtness halogen lamp 110Vor120V/6V20W |
Package | Foamed plastic+ carton |
Optional | Eyepiece WF16X Incandescent Lamp 20W,5W Fluorescent Lamp,LED Lamp,CCD Video Camera,Accessories For Photography Turret Annular Phase Contrast Kit |
